Maxisafe ZTM-10 Confined Space Entry Tripod - 10 Foot
Maxisafe ZTM-10 Confined Space Entry Tripod - 10 Foot
Style Code: ZTM-10
Tech Card
Trade pricing
Add to your order
Loading your contract prices…
- 7-day returns
- Free shipping over $150
- +61 2 6056 6685
Most items are ordered in for you. Allow 5 to 7 business days to prepare your order before dispatch. Multi-site pickup available at checkout. Contact our team to check availability →
Business buyer? Apply for a trade account

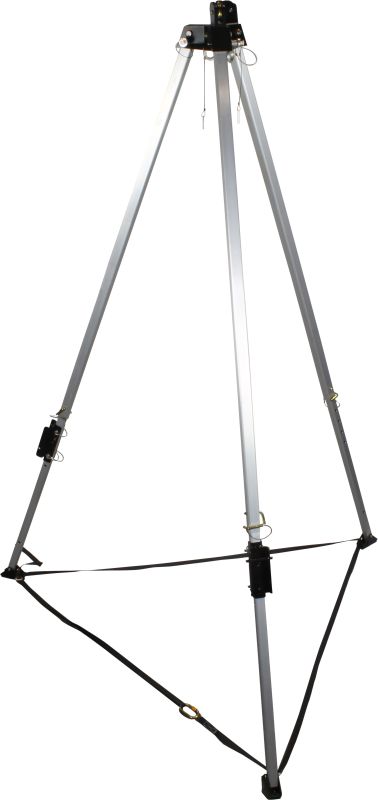

The Maxisafe ZTM-10 Confined Space Entry Tripod provides a rated overhead anchorage structure for personnel man-riding, shaft inspection, and emergency winch retrieval. Reaching a maximum working height of 10 feet, the telescopic high-strength aluminium legs lock securely into place using captive detent pins. The cast alloy head includes dual integrated pulley sheaves to support simultaneous rescue winches and fall-arrest inertia reels.
Key Features:
- 10-foot telescopic height accommodates deep manholes, tanks, and silo shafts
- Rated 15kN anchorage load capacity protects personnel and retrieval equipment
- Integrated dual pulley sheaves feed hoist ropes directly down centreline
- Adjustable aluminium legs with rubber soles and steel spikes for varied surfaces
- Heavy-duty safety leg-retention chain prevents splaying on slippery concrete
Product Specifications:
- Structural Testing: Independently certified to AS/NZS 5532:2013 standards
- Anchor Rating: 15kN rated minimum breaking strength
- Height Adjustment: Telescopic legs extending up to 10 feet (3.05m)
- Material: High-tensile extruded aluminium alloy frame
- Style Code: ZTM-10
Specifications & Compliance
- Style Code
- ZTM-10
- PPE Category
- Fall Protection
- Fit / Gender
- Unisex
Maxisafe ZTM-10 Confined Space Entry Tripod - 10 Foot
