Pilot Doorway Barrier Kit

Pilot Doorway Barrier Kit

$281.50 AUD
$281.50 AUD
$255.91 ex. GST
Taxes included. Shipping calculated at checkout.

Most items are ordered in for you. Allow 5 to 7 business days to prepare your order before dispatch or pickup. Contact our team to check availability →

Trade checkout doesn't use the cart — add this to your order in the order grid below, or in the trade portal.

Trade pricing

Add to your order

Loading your contract prices…

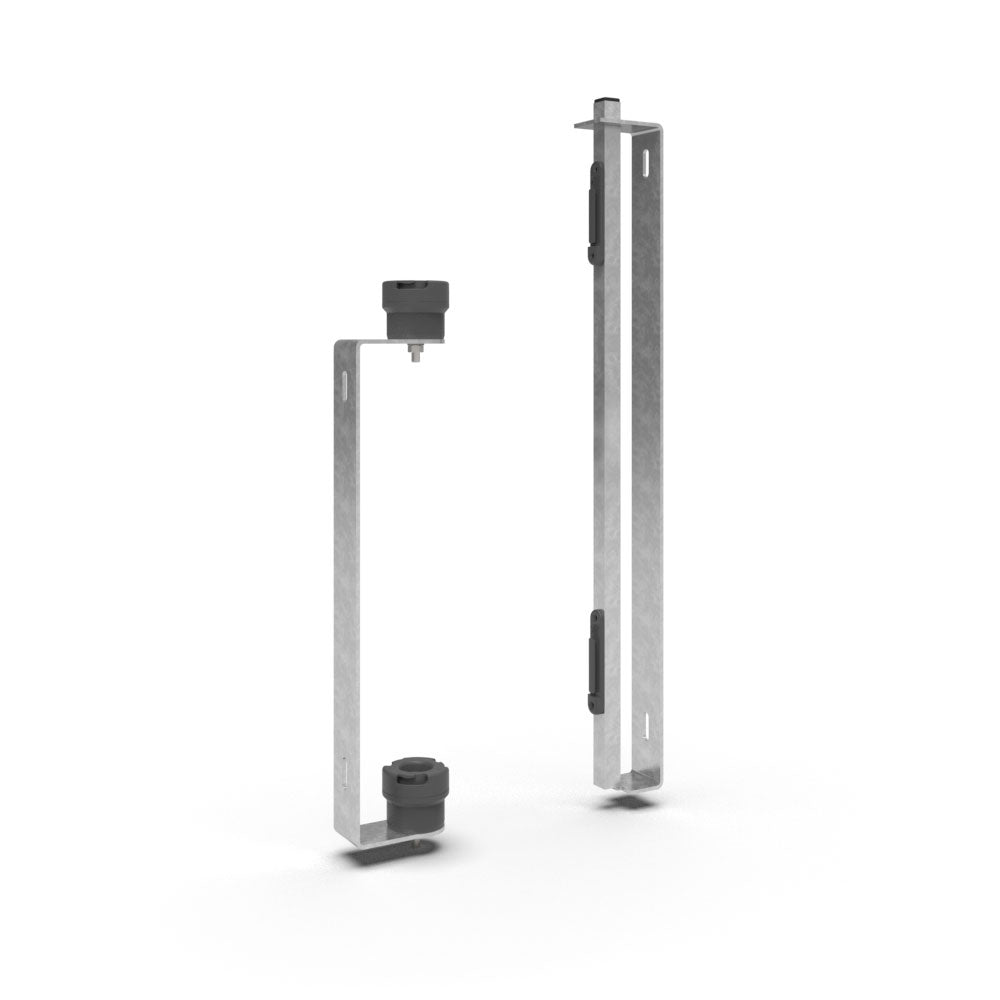

The Pilot Door Barrier Kit (PILOT-DBK) can be used on openings or doorways up to 10 metres in length when fully extended. Each kit consists of a mounting bracket fitted with two Pilot Twist-lok connectors for mounting the belt units, and a receiver bracket with aluminium connector rail and 2 belt receiver clips.

  • Brackets are galvanised

Depending on the application and width of the required span, the bracket kit can be fitted with either two Pilot 5 or two Pilot 10 metre belt units. With the brackets securely mounted the connector rail is simply walked out and positioned in the receiver bracket on the opposite side of the opening. The recommended mounting height is 900mm from ground to the bottom surface of both brackets but can be adjusted to achieve the best visual and functional operation.
